PART NO.

規格/編碼

ITEM NO.

品名型號

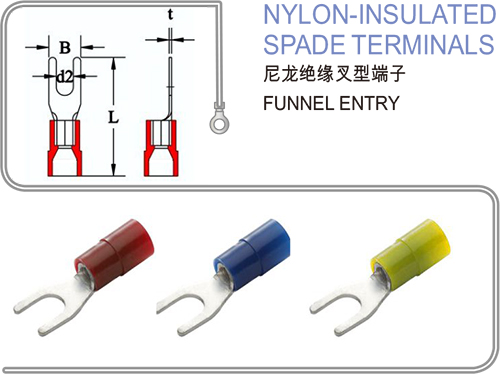

尺寸DIMENSIONS(mm)

STUD SIZE

WIRE RANGE

電線范圍

A .W.G.mm2

B

d 2

L

t

AES1.25M3

AES1.25-3

5.70

3.20

22.00

0.75

#4

22-16 A.W.G.

0.5-1.5 mm2

AES1.25M3.5

AES1.25-3.5

6.20

3.70

#6

AES1.25M3.5S

AES1.25-3.5S

5.70

3.70

#6

AES1.25M4

AES1.25-4

7.20

4.30

#8

AES1.25M4S

AES1.25-4S

6.40

4.30

#8

AES1.25M5

AES1.25-5

8.00

5.30

#10

AES1.25M6

AES1.25-6

10.70

6.40

23.00

1/4

AES1.25M6S

AES1.25-6S

9.30

6.40

1/4

AES1.25M8

AES1.25-8

13.50

8.40

28.00

5/16

AES1.25M10

AES1.25-10

15.00

10.50

28.50

3/8

AES2M3

AES2-3

5.70

3.20

22.00

0.80

#4

16-14 A.W.G.

1.5-2.5 mm2

AES2M3.5

AES2-3.5

6.20

3.70

#6

AES2M3.5S

AES2-3.5S

5.70

3.70

#6

AES2M4

AES2-4

7.20

4.30

#8

AES2M4S

AES2-4S

6.40

4.30

#8

AES2M5

AES2-5

8.00

5.30

#10

AES2M6

AES2-6

10.70

6.40

23.00

1/4

AES2M6S

AES2-6S

9.30

6.40

1/4

AES2M8

AES2-8

13.50

8.40

28.50

5/16

AES5.5M3

AES5.5-3

7.30

3.20

26.70

1.00

#4

12-10 A.W.G.

4-6 mm2

AES5.5M3.5

AES5.5-3.5

8.10

3.70

#6

AES5.5M3.5S

AES5.5-3.5S

6.30

3.70

#6

AES5.5M4

AES5.5-4

8.20

4.30

#8

AES5.5M4S

AES5.5-4S

6.30

4.30

#8

AES5.5M5

AES5.5-5

9.00

5.30

#10

AES5.5M6

AES5.5-6

12.00

6.40

30.70

1/4

AES5.5M6S

AES5.5-6S

9.00

6.40

1/4

AES5.5M8

AES5.5-8

13.50

8.40

32.60

5/16

AES8M4

AES8-4

8.20

4.30

30.00

1.00

#8

8 A.W.G.

8 mm2

AES8M5

AES8-5

9.00

5.30

#10

AES8M6

AES8-6

12.00

6.60

1/4

AES14M5B

AES14-5B

11.0

5.4

37

1.1

#10

6A.W.G.

14 mm2

AES14M5B(t=1.5)

AES14-5B(t=1.5)

1.50

#10

AES14M6B

AES14-6B

6.4

1.10

1/4

AES14M6B(t=1.5)

AES14-6B(t=1.5)

1.50

1/4

AES14M8B

AES14-8B

13.8

8.4

40

1.10

5/16

AES14M8B(t=1.5)

AES14-8B(t=1.5)

1.50

5/16

AES22M4B

AES22-4B

12.8

4.5

41.3

1.2

#8

4A.W.G.

22 mm2

AES22M5B

AES22-5B

12.0

5.5

42.3

#10

AES22M6B

AES22-6B

13.0

6.6

43.3

1/4

AES22M8B

AES22-8B

15.0

8.6

45.3

5/16
